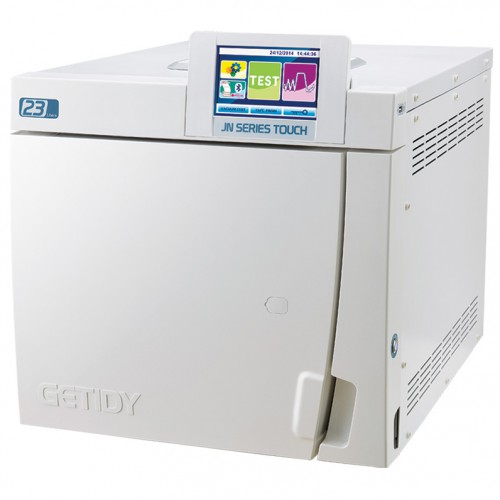

Getidy® JN-18/23 Dental Autoclave Sterilizer Class B 18L/23L
STANDARD:
Touchscreen · Bluetooth · Delay-Start · Sleep-Mode · Water Monitoring · Pipeline Cleanning · SU304 Stainless steel bellows · USB Record Download · ULKA brand water pump · New type of rapid steam generator · Motor& pressure switche & water flow switche are produced in Germany
OPTIONAL:Bluetooth label thermal printer · Mobile APP
***If you need to upgrade the version, please contact our customer service in advance to calculate the price.****
Features:
1. European Class B and S, in accordance with EN 13060: 2004 standard, with three times pre-vacuum and one times pre-vacuum, pulse drying function. Vacuum index up to -0.85bar, the device residual humidity <0.2%.Being able to sterilize instruments that are packed,unpacked,solid,Hollow A,Hollow B and Hollow B pipeline.
2. HD color touchscreen, Menu interface, PC Automatic control.
3. With tests of “BOWIE & DICK”、 “HELIX”、 “VACUUM”、 “PARTS PERFORMANCE”.
4. User-defined Function. Adjust sterilization temperature,vacuum times,sterilization time,drying time.
5. New rapid steam generator of stainless steel pipe, completely solve the Silica gel pipeline and seal because it is aging. Set “WASH” program, cleaning pipeline to avoid clogging.
6. Multilanguage are optional, Easy to operate. Users can easily find the language according to their requests.
7. The autoclave stores 128 sterilization records. By USB connector download to U disk.
8. Save electricity Function:Delay-Start、Sleep-Mode、turn off after sterilization、Power recovery restart.
9. Water and steam separation device. In order to improve the life of the vacuum pump, improve the pulse vacuum value, so that the device is more reliable sterilization, enhance the dryness of the device.
10. Automatic distilled water function. Upward-Open water tank.
11. Double temperature sensor inside chamber, independent implementation system and evaluation system.
12. ULKA brand mini water pump. SUCO brand Pressure Switch. SEEFRID brand door motor.SU 304 stripe stainless steel.
13. Material of cover is safe and reliable. Covers and chambers are made of imported 2mm SU304 stainless steel which will guarantee safety at a high pressure inside chambers and avoid the second pollution caused by the corrosion.
14. Getidy innovates and develops new technology to control temperature and pressure and ensure the tolerance temperature inside chamber is less than 0.5℃.
15. The accuracy of temperature is 0.1℃，and the accuracy of pressure is 0.1bar.
Upgrade Function：
◎Bluetooth label thermal printer：after the autoclave is connected to the printer by Bluetooth signal,order of autoclave send to printer.After the label is printed,it is posted at package. The contents of the label is date,time,S.N,program cycle. Convenience the process is traced.
◎Mobile APP：monitor the various operating conditions of the autoclave. You can operate the sterilizer by phone. After sterilization is over, send a message to your phone.etc.
◎Water Monitoring Device：when you supply the unqualified distilled water, the autoclave runs will is stopped.
***If you need to upgrade the version, please contact our customer service in advance to calculate the price.****
Specifications
Sterilizing temperature: 121℃, 134℃
Special function: kill the AIDS(HIV), hepatitis B(HBV)mad cow virus and Bacillus
Dry procedure: vacuum drying
Display: 240X160 Dots LCD, multi languages
System record: 50 times
Sterilization program: 8 kinds of programs
Test program: Bowie&Dick test, Vacuum test, Helix test
Sterilizing data: print by optional external mini-printer or download by USB port
Safety features: Safe Valve; Double-control lock system and self-test alam system
Water supply system: two water tanks inside, capacity of reservoirs (3.5L fresh water and 5L waste water)
Power: AC 110V or 220V±10%
Frequency: 50/ 60Hz
Sterilization Class: European class B
Rated power: 1800W
Instrument containers: 5-layer activity pallet rack with 3 trays
Model: JN-18
Capacity: 18L
Chamber size: 250X355mm
N.W./G.W.: 63/58KGS
Packing size: 660X550X560mm
SKU: GT-D-18JQA-220
Model: JN-23
Capacity: 23L
Chamber size: 250X450mm
N.W./G.W.: 60/65KGS
Packing size: 660X550X560mm
SKU: GT-D-18JQA-220
Instructions
1. Please read the manual carefully before operation.
2. Put sterilizers on horizontal worktable and raise the front two supporting stands slightly.
3. Be sure to use distilled water in order to prolong the life of sterilizers.
4. Clean the water tanks and water filter regularly.
5. Do not move the sterilizer during the process of work.
6. All the medical equipment, blankets, clothing etc. which contact pathogenic microorganisms must be sterilized by chemical disinfectant first.
7. The package or container for disinfection items must be appropriate, and is recommended to use double wrapped white cotton with good steam penetration.
8. Try to put the same kind of instrument in the same sterilizer flatly,leave aperture, make sure steam can penetrate easily.
9. Make sure the machine in good condition, especially the safe valve.
10. Do not open the door until the pressure fall down to “0” bar.
