Portable Dental X ray Unit AD-60P + Handy HDR 600A Dental X-ray Sensor Kit

Special Offer in February 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till February 29th, 2024
  • Note:No coupon code needed, please place order directly!
  • Our Price:$2379.99

- +
Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $2260.99 5%
5 $2213.99 7%
10 $2141.99 10%

Guaranty: 12 Months Warranty

Shipping: Fast Free Shipping Over $49!

Paypal Supports

Portable Dental X ray Unit AD-60P + Handy HDR 600A Dental X-ray Sensor Kit

Portable Dental X ray Unit AD-60P + Handy HDR 600A Dental X-ray Sensor Kit



Digital Dental Portable X ray Handheld Mobile Unit Intraoral Lab Machine AD(60P)



Features:

1. This portable dental X-ray unit is high frequency machine.

2. The body is small, light weight and nearly no radiation. It has premium image quality, portable storage, save more space. It uses high frequency and DC international power supply.

3. All of the components installed in the central PC board concentrated. Shock, set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.

4. There are also manual buttons installed on the surface of shell, as well as batteries and charges.

5. This unit mainly suitable for oral pre-treatment for learning internal organizational structure, root depth and so on, is indispensable in daily life clinic equipment, especially for dental implant surgery.

6. It also can connect with sensor, is great convenience..



Specifications

Tube voltage: 60KV

Tube current: 1mA

Exposure time: 0.1--2.0s

Frequency: 30KHz

Rate power: 60VA

Distance from skin to cone: 130mm

Tube focus: 0.3mm*0.3mm

Battery: DC14.8V 6400mAh

Charger input voltage: AC100V-240V±10%

Output voltage: DC16.8V

Ambient temperature: 5℃~40℃

Relative temperature: <75%RH

Size(mm): 138*165*185

Package size(mm): 220*240*275





Portable Dental X ray Unit AD-60P + Handy HDR 600A Dental X-ray Sensor Kit

Portable Dental X ray Unit AD-60P + Handy HDR 600A Dental X-ray Sensor Kit



Portable Dental X ray Unit AD-60P + Handy HDR 600A Dental X-ray Sensor Kit

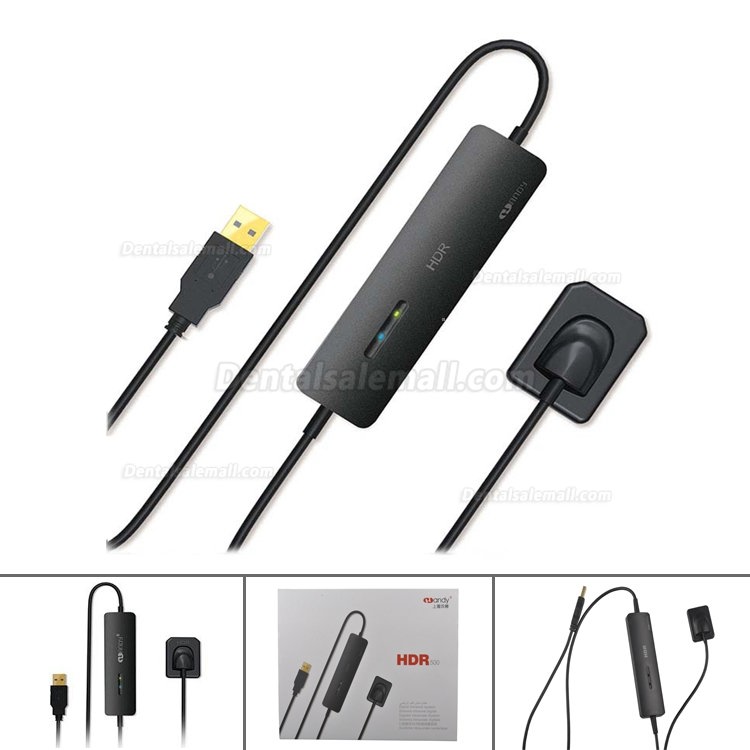

Handy HDR 600A Dental X-ray Sensor USB Handy Digital System

Technical Specifications:
Sensor: APS CMOS sensor
External dimension (mm) :44×32(HDR-600A ) ; 40×26(HDR-500B )
Sensor Active Area : 36×27(HDR-600A ) ; 30×22.5(HDR-500B )
Sensor Thickness : 6mm
Dynamic Range : 0~4,096
Power : 5V±0.5V
Image Transfer :USB2.0
Cable Length :.≥ 3m

Sharing the Sensor Between Rooms

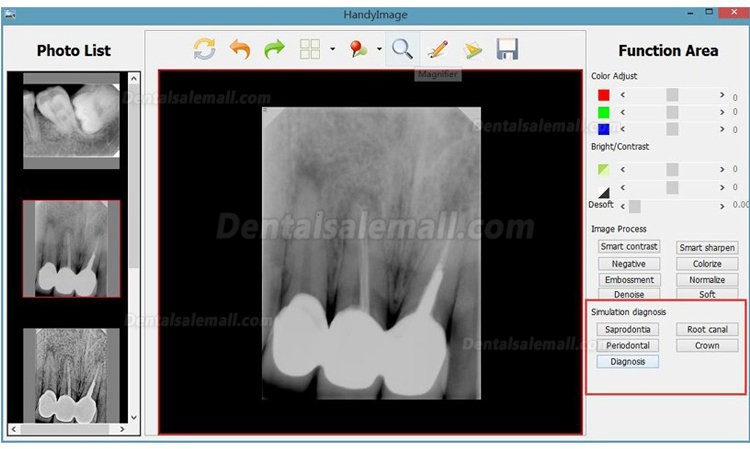

You can share the sensor between several rooms to provide access for several dentist based on Handy Server software. The computer must have the HandyDentist dental imaging software, and HandyServer must installed in one computer.
10 To share the sensor between several computers, move it from room to room. When you connect the sensor to a USB 2.0 port on the computer, the sensor is recognized automatically and is operational.
To share data between rooms, you can connect them to remote data---HandyServer database. The HandyDentist dental imaging software needs only to access a shared database on the same computer or on a remote computer, which means HandyServer
database.


Operating conditions
Environment Temperature : +10℃~+40℃
Environment relative humidity : ≤95%;
Air pressure : 860hPa~1060hPa;

Transport and Storage conditions
Environment Temperature: -25℃~+60℃;
Environment relative humidity : 10%~93%;
Air pressure : 860hPa~1060hPa;


Packing list
1. USB Disk 1pc
2. X-Ray Sensor and Control Box 1pc
3. Holder 1pc
4. Sleeves 1bag

Cable Length: ≥ 3m
