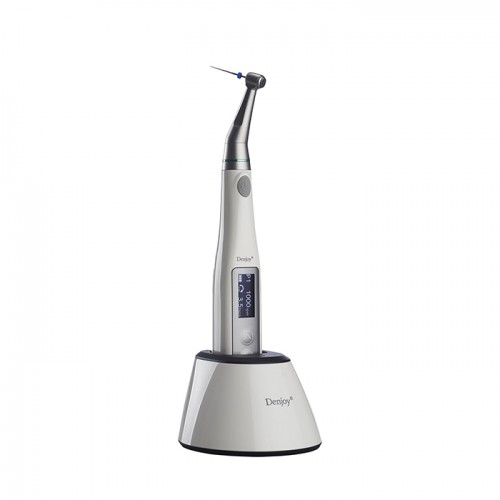

Denjoy Imate3 Dental Brushless Endo Motor 360° Mini Contra-angle Handpiece

Denjoy Imate3 Dental Brushless Endo Motor 360° Mini Contra-angle Handpiece

Features:
1. 360° mini contra-angle with patent;
2. Brushless motor, stabler rpm,higher torque;
3. 9 programs can be set on Ni-Ti rotary file;
4. Speed 100-1000(rpm)Torque:0.2-5.0 (N.cm);
5. Dominant hand shift;

Parameters:
Speed:100-1000rpm
Torque:0.2-5.0N.cm
Battery Capacity:2000mAh
Reciprocate angle:30-370°
Charging time:＜2h
Screen resolution:128*64;

Operation mode:

Auto Oscillation Control:
After starting,the file needle rotates 360°clockwise(①)
When the torque reaches the set torque,run the rotation action according to the set angle (②③)
Resume clockwise rotation when torque is less than  the set value(①)
Only clockwise rotation angle can be set, and counterclockwise rotation angle is half of clockwise rotation angle.

Reciprocation:
After starting, the file needleoperates according to the set speed and reciprocating angle,the maximum torque is not adjustable by default,the forward reciprocation and reverse reciprocation are realized by setting the angle.
Reciprocating motion file is recommended.

Clockwise Mode
After starting, the file needle rotates 360°clockwise(①)
When the torque point action is set to "reverse",the buzzer willprompt when the torque is set,and the motor will rotate counterclockwise(②)
Rotate clockwise when torque is removed(①)
The torque point action is set to "stop", and the motorwill stop rotating when the torque is set.

Counterclockwise Mode
After starting, the file needle rotates 360°counterclockwise(①)
When the torque point action is set to "reverse",the buzzer will prompt when the torque is set,and the motor will rotate clockwise(②)
Counterclockwise rotation will resume after torque is removed(①)
The torque point action is set to "stop", and the motorwill stop rotating when the torque is set.
